CAPABILITIES

CAPABILITIES

ENGINEERING



BOS Manufacturing engineers utilize the latest in 3D CAD software to produce an excellent visual and technical representation of each design task. CAD software is selected based on customers particular needs. Delivery is provided in native Autodesk Inventor, Siemens UG NX, or SolidWorks, or an assortment of cross platform formats. Additionally, we partner with numerous specialized engineering firms in order to bring the best possible solution to our customers’ projects.



FABRICATION

• DoALL 16” x 16” Automatic Feed Horizontal Band Saw
• Marvel 24” x 24” Vertical Miter Band Saw
• Wilton 10” x 16” Horizontal Miter Band Saw
• DoALL 24” x 24” Vertical Band Saw
• Kalamazoo 12” Abrasive Miter Saw
• Adira 90 ton x 10’ CNC Press Brake
• Amada 220 ton x 14’ CNC Press Brake
• Whitney 10 ga. x 6’ Box and Pan Brake
• 15 ton and 30 ton 2 Station Iron Workers with 24” Punch Throat
• 1/4" x 3’ Hydraulic Shear
• (7) Wire Feed and Tig Welders with 300 amp capacity
• 75 KVA Deep Throat Single Station Spot Welder
• Miller 5080 Plasma Cutter 1 1/2” capacity
• AKS Accu-Kut CNC Plasma Table 400 amp with 6’ x 12’ cutting range

• Cincinnati 500H 16’ Long Press Brake

PastedGraphic-21 copy.jpg
PastedGraphic-20 copy.jpg


MACHINING

• (3) Bridgeport Variable Speed Knee Mill with power feed and DRO
• Tree Journeyman 310 CNC Knee Mill
• Dynapath DMC4E CNC Vertical Machining Center X52“ x Y32“ x Z24“
• (2) Doosan DNM400 CNC Vertical Machining Center X32” x Y18” x Z18”

• (2) Doosan Diamond Series DMV 4020  X40” Y20” Z24”
• Haas EC1600 Horizontal Machining Center X64" x Y40" x Z32"

• Mitsubishi MHT 1416 CNC HMC X78” x Y59” x Z17” with 4th axis table
• Clausing 14” x 48” Engine Lathe
• South Bend 17” x 60” Engine Lathe
• Hardinge DSM 59 Super Precision Turret Lathe
• Dynapath FB-14 CNC Lathe 8" swing x 35" length of turn.
• ECOCA MT415 CNC Lathe 15” swing x 120” length of turn
• Fosdick 4’ Sensitive Radial Drill
• (3) 6" x 18" Surface Grinders with electromagnetic chuck
• 42” Blanchard Vertical Rotary Surface Grinder

• Mastercam CNC Machining Software

PastedGraphic-10 copy.jpg
PastedGraphic-9 copy.jpg


FINISHING

• Media Blast Cabinet
• Prep and Wash Station 6’ x 12’ x 40’
• Cure Oven 450° 10’ x 10’ x 25’

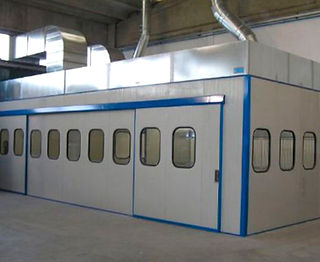

• Wet / Powder Spray Booth 10’ x 10’ x 25’
• Graco Wet Paint Guns and Equipment
• PPI Powder Paint Guns and Equipment
• Tru Temp Black Oxide Processing Surface Plates up to 36” x 72”

PastedGraphic-11 copy.jpg
Screen Shot 2020-10-29 at 12.07.53 PM.pn


ASSEMBLY

Finishing 2.jpg

BOS Manufacturing is a full-service provider of Welding and Assembly Systems experienced in many types of joining applications



Types of Joining Applications

• Mig Welding

• Plasma Tig Welding
• Tig Welding

• Aluminum

All fasteners torqued and paint marked per ISO recommended specifications. Fasteners subject to vibration or movement securely wire tied. Electrical wiring, and pneumatic or hydraulic pipe/hose lead to locally mounted I/O blocks and manifolds used for integration with your feeds. All components are assembled with operator safety and ease of maintenance in mind. Large 32,000 sq. ft. x 30’ tall assembly bay with drive through ground level doors. All weather loading docks with power dock boards. Mitsubishi, Yale, and Datsun fork trucks. GMC 22’ 30,000lb. capacity Flatbed Stake Truck provides safe delivery to your facility.

OH Struct_wRobot.png

IP SONIC WELDING

Assembly 2.JPG

PLASTIC SONIC WELDING

TESLA FRONT AND REAR DOOR CARRIERS
